DESCRIPTION

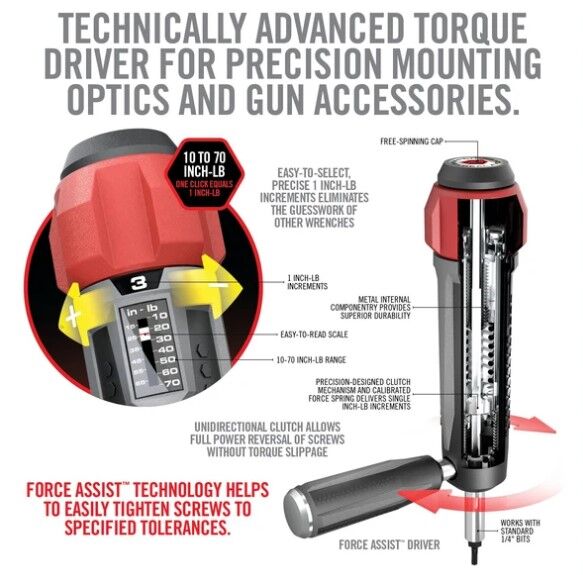

The Real Avid Smart‑Torq is a precision torque driver developed for correctly installing riflescope rings, bases and firearm components.

Its adjustable 10–70 inch-pound range can be selected in precise 1 inch-pound increments. Visual, tactile and audible feedback helps confirm the chosen setting and indicates when the specified torque has been reached.

A rubberised grip, free-spinning palm cap and Force Assist handle improve control when applying downward pressure. The kit includes 12 commonly used bits and a protective high-density foam storage case.

FEATURES

• Helps prevent damage caused by over-tightening

• Provides repeatable torque for secure optic installation

• One-click adjustment corresponds to 1 inch-pound

• Visual, tactile and audible feedback improves confidence

• Force Assist handle provides additional leverage and control

• Unidirectional clutch allows fasteners to be loosened in reverse

• Accepts standard ¼-inch hex bits

• Supplied in an organised protective case

SPECIFICATIONS

• Brand: Real Avid

• Model: Smart-Torq

• Product type: Adjustable precision torque driver

• Torque range: 10–70 in-lb

• Adjustment increments: 1 in-lb

• Bit interface: Standard ¼-inch hex

• Grip: Rubberised ergonomic design

• Palm cap: Free-spinning

• Mechanism: Unidirectional toothed clutch

• Included bits: 12

• Manufacturer part number: AVSTORQ

• UPC: 813119013034

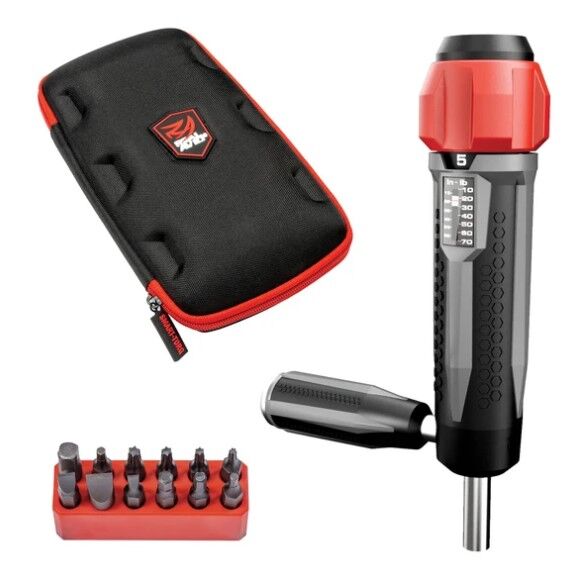

KIT INCLUDES

• Smart-Torq adjustable torque driver

• Force Assist handle/driver

• T10 Torx bit

• T15 Torx bit

• T20 Torx bit

• T25 Torx bit

• 3mm hex bit

• 5/32-inch hex bit

• 3/16-inch hex bit

• 7/64-inch hex bit

• 90-6 flat bit

• 38-4 flat bit

• 60-5 flat bit

• Square-drive adapter bit

• High-density foam storage case

Sockets are not included.

BEST SUITED FOR

• Installing riflescope rings and bases

• Tightening action screws to manufacturer specifications

• Mounting compatible firearm accessories

• Shooters wanting repeatable inch-pound torque settings

FREQUENTLY ASKED QUESTIONS

What torque range does the Smart-Torq provide?

It adjusts from 10 to 70 inch-pounds in precise 1 inch-pound increments.

How do I know when the selected torque has been reached?

The driver provides visual, tactile and audible feedback. Stop applying force when the torque mechanism releases or clicks at the selected setting.

Are inch-pounds and foot-pounds the same?

No. The Smart-Torq is calibrated in inch-pounds. Always confirm that the firearm or optic manufacturer’s specification is also expressed in inch-pounds before tightening.

Can the Smart-Torq loosen screws?

Yes. Its unidirectional clutch allows screws to be backed out in reverse without activating the torque-limiting mechanism.

Can I use other driver bits?

Yes. The driver accepts compatible standard ¼-inch hex bits. Ensure the bit fits the fastener correctly to prevent damage.

How should the driver be stored?

Return the torque setting to its minimum value before storage to reduce prolonged spring tension. Keep the driver and bits clean, dry and protected inside the supplied case.
