DESCRIPTION

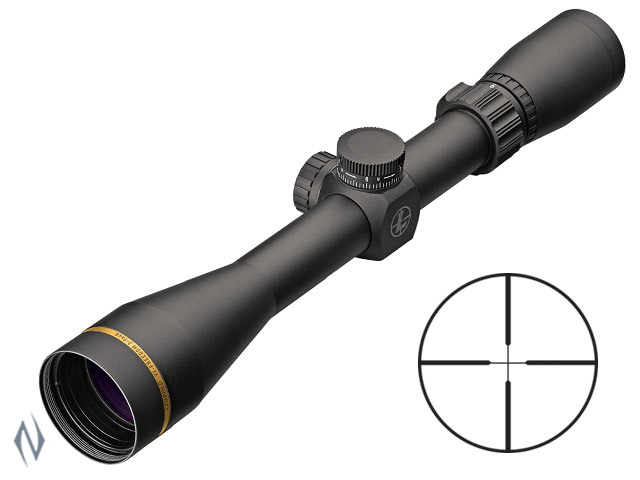

The Leupold VX-Freedom 3-9x40 CDS Duplex is a lightweight, versatile hunting riflescope combining a familiar magnification range with Leupold’s Custom Dial System. Once matched to the rifle’s ballistics, an appropriate custom elevation dial allows the shooter to range the target, dial the distance and aim directly.

Leupold’s Advanced Optical System provides dependable light transmission, glare reduction and clarity. The scope uses a second-focal-plane Duplex reticle and is waterproof, fogproof and shockproof for dependable field use.

FEATURES

• CDS-compatible elevation dial can be customised to specific ballistics

• Versatile 3-9x magnification for general hunting

• Duplex reticle supports fast, uncluttered aiming

• Advanced Optical System helps manage glare and low-light conditions

• ZeroStop provides a positive return-to-zero reference

• Scratch-resistant lenses

• Lightweight and field-ready construction

• Waterproof, fogproof and shockproof

SPECIFICATIONS

• Brand: Leupold

• Series: VX-Freedom

• Magnification: 3-9x

• Objective lens: 40mm

• Reticle: Duplex

• Focal plane: Second

• Main tube: 1 inch

• Elevation adjustment: CDS

• Adjustment value: ¼ MOA per click

• Elevation and windage range: 60 MOA

• Fixed parallax distance: 150 yards

• Eye relief: 4.2-3.7 inches

• Field of view at 100 yards: 33.1-13.6 feet

• Length: 12.49 inches / approximately 317mm

• Weight: 12.2oz / approximately 346g

• Finish: Matte black

• Leupold part number: 174182

BEST SUITED FOR

• General centrefire hunting

• Medium-range shooting

• Hunters wanting a ballistic-matched elevation dial

FREQUENTLY ASKED QUESTIONS

What does CDS mean?

CDS stands for Custom Dial System. A compatible elevation dial can be marked for the trajectory of a particular rifle, cartridge and load, reducing the need to calculate elevation holdover in the field.

Is a custom ballistic dial supplied with the scope?

The scope is CDS compatible, but Leupold lists the BDC dial as not included. Custom-dial eligibility and ordering arrangements should be confirmed with Leupold or the Australian distributor.

Is the reticle illuminated?

No. This model uses a non-illuminated second-focal-plane Duplex reticle.
