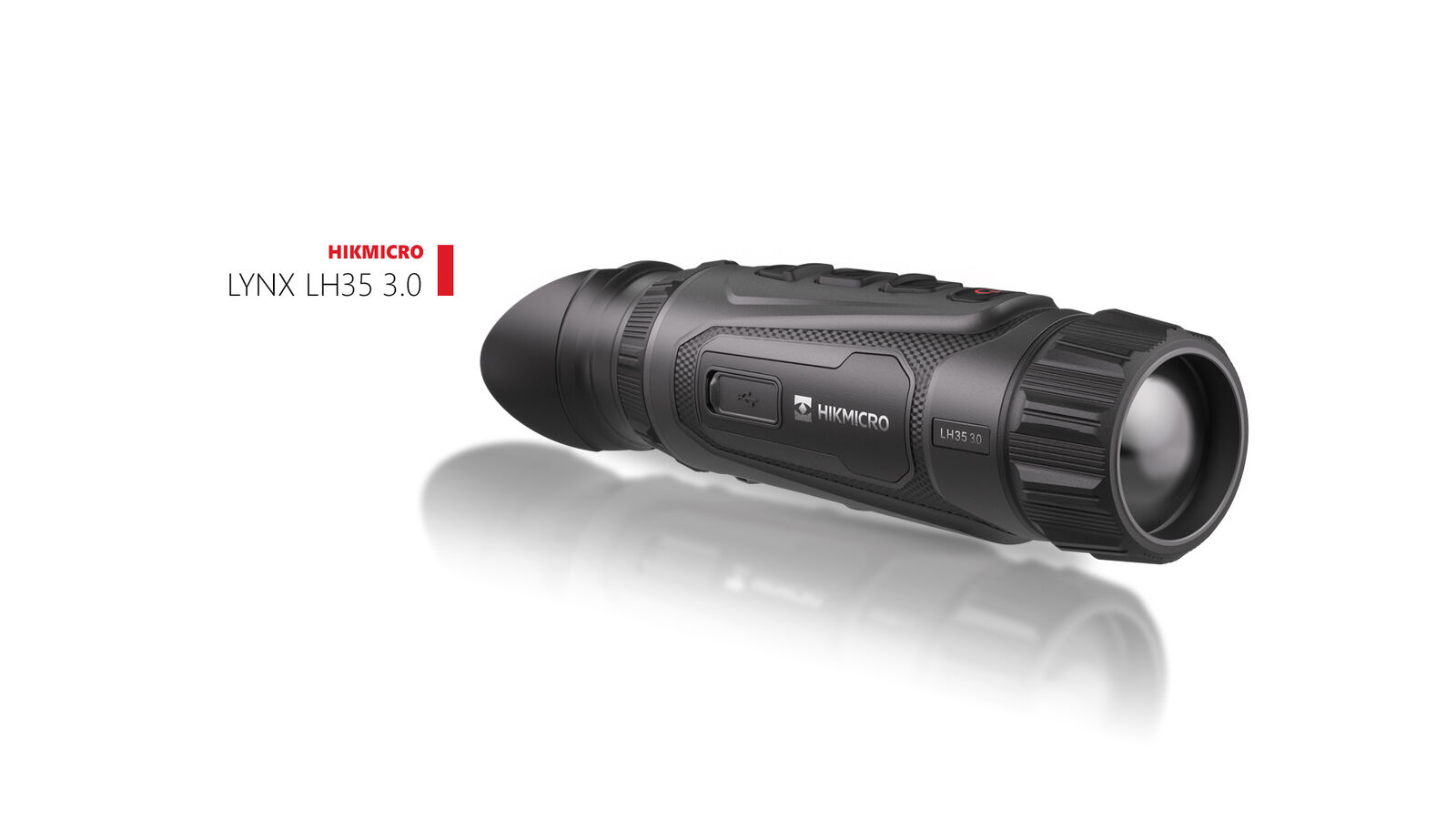

HIKMICRO Lynx 3.0 LH35 Thermal Monocular – 35mm 384×288 12µm <15mK

RRP: $2,399.00

The Lynx 3.0 LH35 is designed for serious users requiring long-range thermal detection and high image clarity. Featuring a 384 × 288 thermal detector, 35mm F1.0 lens, and 3.4× base magnification, this model delivers outstanding performance for professional hunters and outdoor professionals.

With a 7.5° field of view and an impressive detection range of up to 1,800 metres, the LH35 excels in wide open terrain where long-distance spotting is critical.

Advanced imaging technologies such as AI-powered Image Pro 3.0, Zoom Pro, and the HIKMICRO Shutterless Imaging System (HSIS) deliver clear, stable thermal images without interruptions from shutter calibration.

Despite its extended range capabilities, the LH35 remains compact and lightweight at 354.5g, powered by a replaceable 18650 rechargeable battery and featuring a 1920 × 1080 OLED display for sharp image detail.

---

Key Features

• High-sensitivity thermal sensor with NETD < 15mK (@25°C, F1.0)

• 35mm F1.0 lens with detection range up to 1,800m

• 384 × 288 resolution with 12µm pixel pitch

• AI-powered Image Pro 3.0 and Zoom Pro image enhancement

• HIKMICRO Shutterless Imaging System (HSIS) for uninterrupted viewing

• 1920 × 1080 OLED display

• Replaceable 18650 rechargeable battery

• Up to 5 hours runtime (25°C) or 4.5 hours at -20°C

• 64GB internal storage for images and video

• Wi-Fi hotspot (2.4 / 5 GHz) for mobile connectivity

• Compact 354.5g lightweight design

---

Specifications

Thermal Module

• Sensor Type: VOx Uncooled Focal Plane Array

• Resolution: 384 × 288

• Frame Rate: 50 Hz

• Pixel Pitch: 12µm

• Spectral Range: 8–14µm

• NETD: <15mK (@25°C, F1.0)

• Lens: 35mm F1.0

• Focus Mode: Manual Focus Ring

• Detection Range: 1,800m

• Minimum Focus Distance: 3.5m

• Magnification: 3.4× – 27.2× (8× digital zoom)

• Field of View: 7.5° × 4.6°

• Field of View @100m: 13.1m × 8.0m

---

Display

• Display Type: 0.49" AMOLED

• Resolution: 1920 × 1080

• Exit Pupil: 6mm

• Eye Relief: 20mm

• Diopter Adjustment: -5D to +3D

Colour Palettes

• Black Hot

• White Hot

• Red Hot

• Fusion

• Red Monochrome

• Green Monochrome

Image Controls

• Brightness Adjustment

• Contrast Adjustment

• Tone Modes: Cold / Warm

• Zoom Pro

• Image Pro 3.0

• HSIS (Shutterless Image System)

• Sync Pro

---

System Features

• Video Recording

• Snapshot Capture

• Audio Recording

• Standby Mode

• 64GB Built-in EMMC Storage

• Picture-in-Picture (PIP)

• Hot Track

• Distance Measurement

• Local Album

• Wi-Fi Hotspot (2.4GHz / 5GHz)

---

Power

• Battery Type: Replaceable & Rechargeable 18650 Li-ion

• Battery Life:

  • Up to 5 hours (hotspot on @25°C)

  • Up to 4.5 hours (hotspot on @-20°C)

• Charging: USB-C (5V DC, 2A)

• Supports external power supply

---

General

• Ingress Protection: IP67

• Dimensions: 169.6 × 53.6 × 49.5 mm

• Weight: 354.5g (with battery)

• Operating Temperature: -30°C to 45°C

• Humidity: ≤90%
