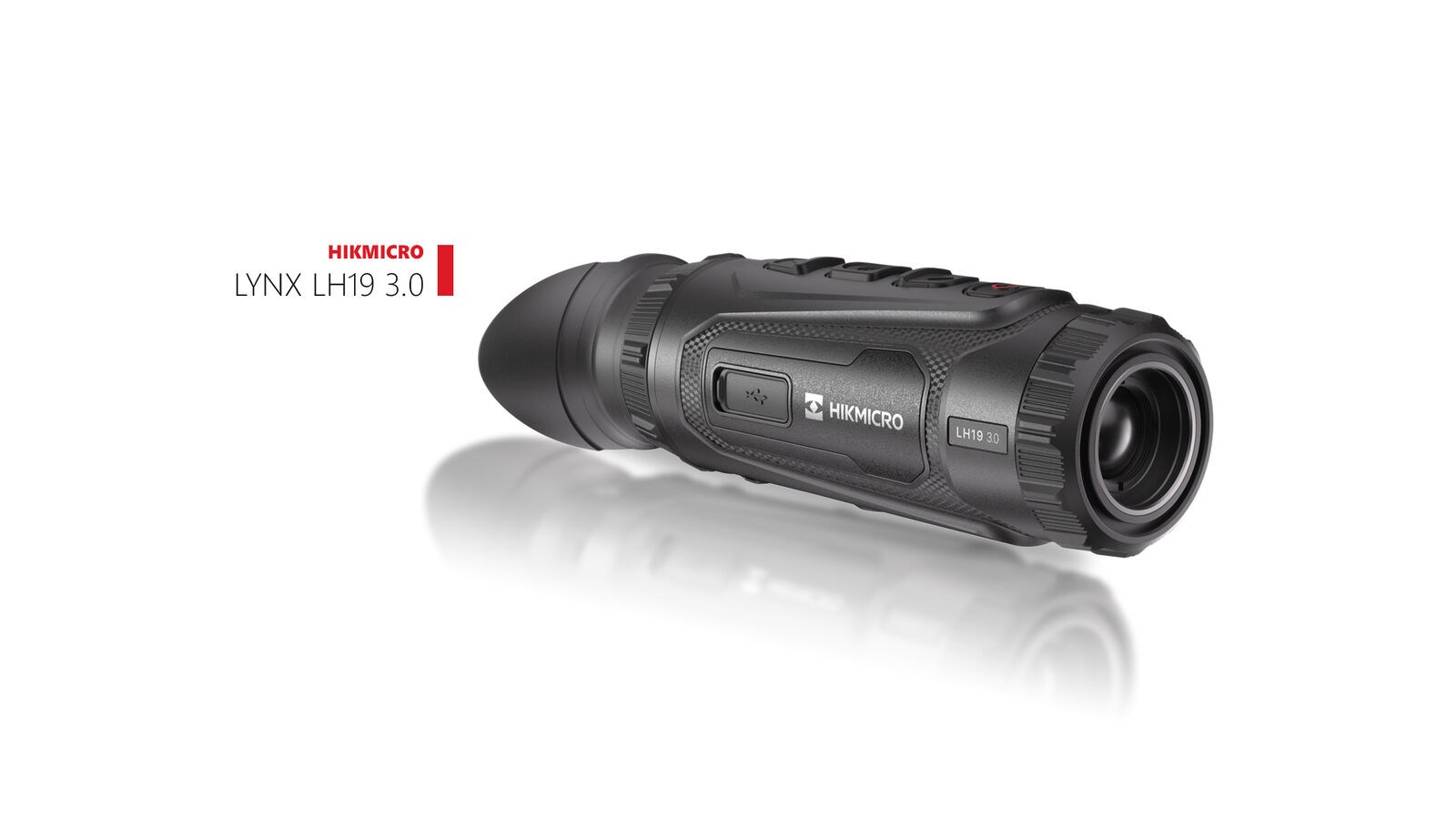

HIKMICRO Lynx 3.0 LH19 Thermal Monocular – 19mm 384×288 12µm <15mK

RRP: $1,899.00

The Lynx 3.0 LH19 combines a 384 × 288 thermal detector, 19mm F1.0 lens, and 1.9× base magnification to deliver exceptional performance in a compact handheld unit. Designed for hunters, wildlife observers, and outdoor explorers, it offers a wide 13.8° field of view and a detection range of up to 900 metres.

Advanced imaging technologies including AI-powered Image Pro 3.0, Zoom Pro, and the HIKMICRO Shutterless Imaging System (HSIS) provide smooth, detailed thermal images without interruptions from shutter calibration.

Lightweight and pocket-sized at only 331g, the Lynx LH19 is powered by a replaceable 18650 battery for extended field use and features a high-resolution 1920 × 1080 OLED display for clear viewing in all conditions.

---

Key Features

• High-sensitivity thermal sensor with NETD < 15mK (@25°C, F1.0)

• 19mm F1.0 lens with detection range up to 900m

• 384 × 288 resolution with 12µm pixel pitch

• AI-powered Image Pro 3.0 and Zoom Pro image enhancement

• HIKMICRO Shutterless Imaging System (HSIS) for uninterrupted viewing

• 1920 × 1080 OLED display

• Replaceable 18650 rechargeable battery

• Up to 5 hours runtime (25°C) or 4.5 hours at -20°C

• 64GB internal storage for images and video

• Wi-Fi hotspot (2.4 / 5 GHz) for app connectivity

• Compact 331g lightweight design

---

Specifications

Thermal Module

• Sensor Type: VOx Uncooled Focal Plane Array

• Resolution: 384 × 288

• Frame Rate: 50 Hz

• Pixel Pitch: 12µm

• Spectral Range: 8–14µm

• NETD: <15mK (@25°C, F1.0)

• Lens: 19mm F1.0

• Focus Mode: Manual Focus Ring

• Detection Range: 900m

• Minimum Focus Distance: 3m

• Magnification: 1.9× – 15.2× (8× digital zoom)

• Field of View: 13.8° × 8.4°

• Field of View @100m: 24.2m × 14.7m

---

Display

• Display Type: 0.49" AMOLED

• Resolution: 1920 × 1080

• Exit Pupil: 6mm

• Eye Relief: 20mm

• Diopter Adjustment: -5D to +3D

Colour Palettes

• Black Hot

• White Hot

• Red Hot

• Fusion

• Red Monochrome

• Green Monochrome

Image Controls

• Brightness Adjustment

• Contrast Adjustment

• Tone Modes: Cold / Warm

• Zoom Pro

• Image Pro 3.0

• HSIS (Shutterless Image System)

• Sync Pro

---

System Features

• Video Recording

• Snapshot Capture

• Audio Recording

• Standby Mode

• 64GB Built-in EMMC Storage

• Picture-in-Picture (PIP)

• Hot Track

• Distance Measurement

• Local Album

• Wi-Fi Hotspot (2.4GHz / 5GHz)

---

Power

• Battery Type: Replaceable & Rechargeable 18650 Li-ion

• Battery Life:

  • Up to 5 hours (hotspot on @25°C)

  • Up to 4.5 hours (hotspot on @-20°C)

• Charging: USB-C (5V DC, 2A)

• Supports external power supply

---

General

• Ingress Protection: IP67

• Dimensions: 158.4 × 53.6 × 49.5 mm

• Weight: 331g (with battery)

• Operating Temperature: -30°C to 45°C

• Humidity: ≤90%
