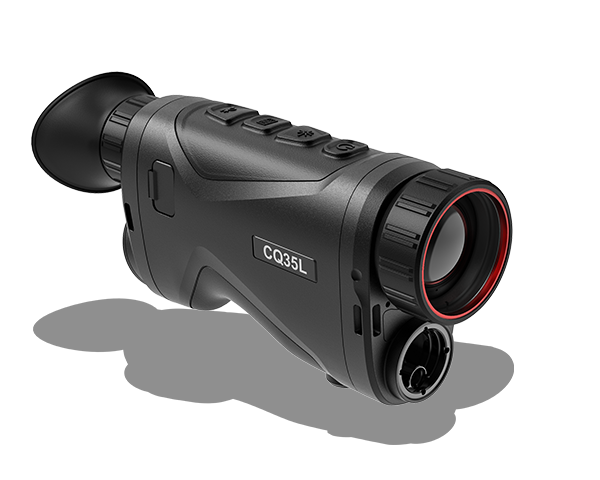

HIKMICRO Condor CQ35L Thermal Monocular – 35mm 640×512 12µm

RRP: $4299

The HIKMICRO Condor CQ35L is a high-performance thermal monocular designed for professional outdoor use, including forest hunting, birding, animal observation, adventuring, and search & rescue. Featuring a 640 × 512 VOx detector with 12µm pixel pitch and a 1024 × 768 OLED display, it delivers outstanding thermal sensitivity (NETD < 20 mK) for clear detail recognition in challenging environments.

Equipped with a 1000m laser rangefinder, advanced Image Pro and Zoom Pro technology, and a compact ergonomic design, the CQ35L ensures reliable performance and ease of use in the field. Lightweight at 400g, it runs for up to 4 hours on a replaceable Li-ion battery.

---

Key Features

• High-sensitivity thermal module (NETD < 20 mK)

• 640 × 512 resolution with 12µm detector

• 35mm F1.0 lens, 2×–16× magnification (8× digital zoom)

• 1024 × 768 0.39-inch OLED display

• Advanced Image Pro and Zoom Pro image processing

• Laser Rangefinder: 1000m max range, ±1m accuracy

• Lightweight & ergonomic design – 400g

• IP67 waterproof rating

• Up to 4 hours runtime

• Supports CVBS output, hotspot, and external power

---

Specifications

Laser Rangefinder

• Safety Class: Class 1

• Wavelength: 905 nm

• Max Range: 1000 m

• Min Range: 10 m

• Accuracy: ±1 m

---

Thermal Module

• Sensor: VOx Uncooled Focal Plane Array

• Resolution: 640 × 512

• Frame Rate: 50 Hz

• Pixel Interval: 12µm

• Spectral Range: 8–14µm

• NETD: < 20 mK (@25°C, F1.0)

• Lens: 35mm F1.0

• Focus: Manual Focus Ring

• Detection Range: 1800 m

• Min Focus Distance: 3.5 m

• Magnification: 2×–16× (8× digital zoom)

• Field of View: 12.5° × 10° / 21.9 m × 17.5 m @100 m

---

Image Display

• Display Type: 0.39-inch OLED, 1024 × 768

• Palettes: Black Hot, White Hot, Red Hot, Fusion

• FFC Modes: Auto, Manual, External Correction

• Exit Pupil: 4 mm

• Eye Relief: 15 mm

• Diopter Range: -5D to +3D

• Brightness / Tone / Contrast Adjustment: Yes

• Image Pro & Zoom Pro: Yes

---

System Features

• Video Recording & Snapshot Capture

• Audio Recording

• Standby Mode

• Internal Storage

• Picture-in-Picture (PIP)

• Hotspot Connectivity

• Hot Track

• Distance Measurement

---

Power

• Battery: Replaceable & Rechargeable Li-ion

• Runtime: 4 hours (@25°C, CVBS and hotspot off)

• Charging: USB Type-C 5V/2A, supports external power

---

General

• Ingress Protection: IP67

• Dimensions: 184.9 × 53 × 87.8 mm (7.28" × 2.09" × 3.46")

• Weight: 400 g (without battery)

• Operating Temperature: -30°C to +55°C
