DESCRIPTION

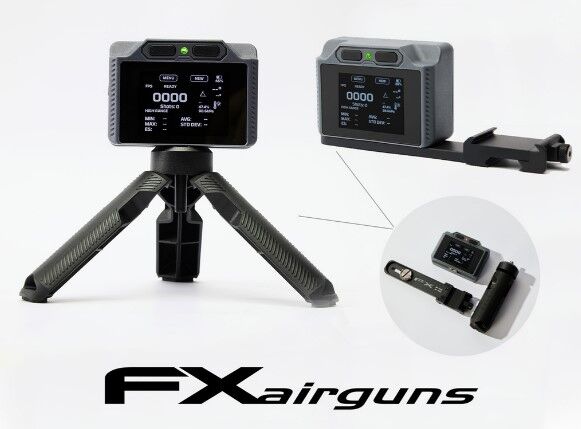

The FX Pocket Chronograph Pro is a compact, professional-grade Doppler radar chronograph designed for airguns, rimfire and centrefire firearms, pistols and archery equipment.

Its broad 200–4,500fps measurement range covers everything from lower-powered airguns to high-velocity rifle ammunition. Because it uses 24GHz Doppler radar rather than optical screens, it can operate indoors or outdoors without relying on specific lighting conditions.

Velocity and shot-string statistics are displayed directly on the colour TFT screen, so a phone is not required. Bluetooth connectivity with the FX Radar app provides live data, session transfer and firmware updates when additional analysis is wanted.

Integrated sensors record temperature, humidity, barometric pressure, cant and pitch. Low Range mode also provides ballistic-coefficient estimation for projectiles travelling up to 1,280fps, with G1, G7, RA4 and GA drag models available.

The included tripod allows convenient bench placement, while the supplied mounting arm fits compatible Picatinny and Arca-Swiss rails. PRS Mode adds a configurable stage timer, split-time counter and cant indicator for competition practice.

Weighing approximately 104 grams and supplied in a protective carrying case, the FX Pocket Chronograph Pro provides comprehensive performance data in a genuinely portable package.

FEATURES

• Advanced 24GHz Doppler radar technology

• Measures velocities from 200 to 4,500fps

• Separate Low and High velocity modes

• Works indoors and outdoors without optical screens

• Colour TFT display with two viewing modes

• Displays average, minimum and maximum velocity

• Calculates extreme spread and standard deviation

• Ballistic-coefficient estimation up to 1,280fps

• G1, G7, RA4 and GA drag models

• Integrated environmental sensors

• Cant and pitch measurement

• Dedicated PRS timer mode

• Stores up to 100 shooting sessions

• Bluetooth connection to the FX Radar app

• Picatinny, Arca-Swiss and tripod mounting options

• USB-C rechargeable battery

SPECIFICATIONS

• Brand: FX Airguns

• Model: Pocket Chronograph Pro

• Australian SKU: FXS-30109

• Manufacturer product number: 30109

• Technology: 24GHz Doppler radar

• Total velocity range: 200–4,500fps / approximately 60–1,370m/s

• Low Range mode: Approximately 200–1,800fps

• High Range mode: Approximately 1,800–4,500fps

• BC estimation: Up to 1,280fps in Low Range mode

• Drag models: G1, G7, RA4 and GA

• Display: Full-colour TFT, 320×240 pixels

• Display modes: Detailed and Large Font

• Sensors: Temperature, humidity and barometric pressure

• Motion sensors: Cant, pitch and movement detection

• Stored sessions: Up to 100

• Connectivity: Bluetooth Low Energy

• Mobile application: FX Radar app

• Phone compatibility: Compatible iOS and Android devices

• Measurement units: FPS, m/s, joules, foot-pounds and power factor

• Battery: Internal rechargeable

• Charging connection: USB-C

• Approximate charging time: 2–3 hours

• Approximate battery life: 8–10 hours of continuous use

• Dimensions: Approximately 75.5×54×30mm

• Weight: Approximately 104g

INCLUDED

• FX Pocket Chronograph Pro

• Compact tripod with 1/4"-20 thread

• Picatinny and Arca-Swiss-compatible mounting arm

• USB-C charging cable

• Protective carrying case

BEST SUITED FOR

• PCP and spring airgun tuning

• Rimfire and centrefire ammunition testing

• Reloading and load-development data

• Archery velocity measurement

• PRS and competition-stage practice

FREQUENTLY ASKED QUESTIONS

Can it measure both airguns and firearms?

Yes. Its 200–4,500fps range supports airguns, subsonic projectiles, rimfire ammunition and high-velocity centrefire cartridges.

Is a smartphone required?

No. Measurements, statistics and saved sessions can be viewed directly on the built-in display. The FX Radar app provides optional data transfer, live streaming and firmware updates.

Can it calculate ballistic coefficient?

Yes. On-device BC estimation is available in Low Range mode for projectiles travelling up to 1,280fps. It supports G1, G7, RA4 and GA drag models.

Does it need daylight to work?

No. Doppler radar does not rely on optical sensors, allowing the chronograph to operate in bright, low-light and indoor conditions.

Are the tripod and rifle mount included?

Yes. The package includes a compact tripod and mounting arm compatible with Picatinny and Arca-Swiss rails.

How long does the battery last?

FX lists approximately 8–10 hours of continuous use. A complete USB-C charge takes approximately two to three hours.
